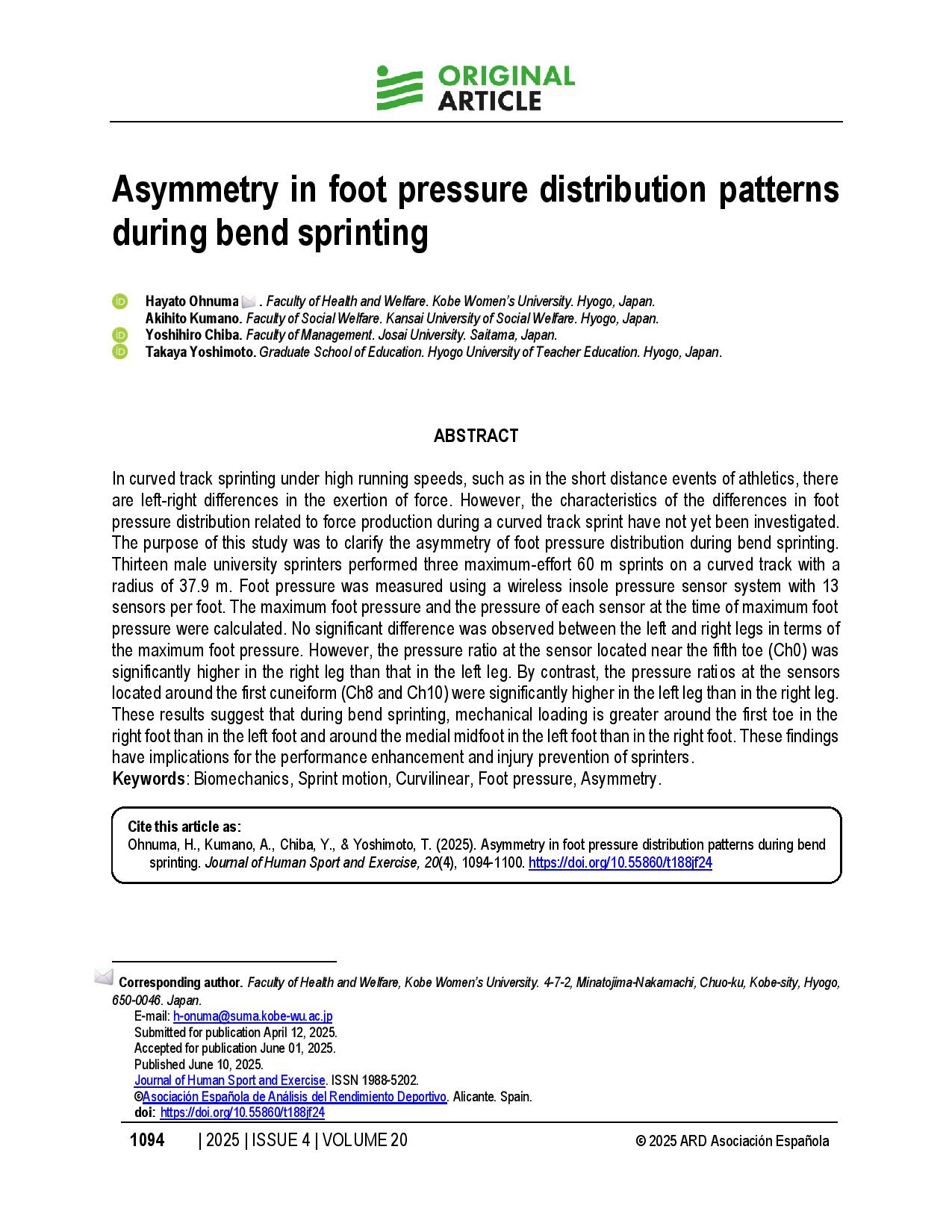

Asymmetry in foot pressure distribution patterns during bend sprinting
Article Sidebar
Main Article Content
Abstract
In curved track sprinting under high running speeds, such as in the short distance events of athletics, there are left-right differences in the exertion of force. However, the characteristics of the differences in foot pressure distribution related to force production during a curved track sprint have not yet been investigated. The purpose of this study was to clarify the asymmetry of foot pressure distribution during bend sprinting. Thirteen male university sprinters performed three maximum-effort 60 m sprints on a curved track with a radius of 37.9 m. Foot pressure was measured using a wireless insole pressure sensor system with 13 sensors per foot. The maximum foot pressure and the pressure of each sensor at the time of maximum foot pressure were calculated. No significant difference was observed between the left and right legs in terms of the maximum foot pressure. However, the pressure ratio at the sensor located near the fifth toe (Ch0) was significantly higher in the right leg than that in the left leg. By contrast, the pressure ratios at the sensors located around the first cuneiform (Ch8 and Ch10) were significantly higher in the left leg than in the right leg. These results suggest that during bend sprinting, mechanical loading is greater around the first toe in the right foot than in the left foot and around the medial midfoot in the left foot than in the right foot. These findings have implications for the performance enhancement and injury prevention of sprinters.
Downloads
Article Details
Section
This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
Each author warrants that his or her submission to the Work is original and that he or she has full power to enter into this agreement. Neither this Work nor a similar work has been published elsewhere in any language nor shall be submitted for publication elsewhere while under consideration by Journal of Human Sport and Exercise (JHSE). Each author also accepts that the JHSE will not be held legally responsible for any claims of compensation.
Authors wishing to include figures or text passages that have already been published elsewhere are required to obtain permission from the copyright holder(s) and to include evidence that such permission has been granted when submitting their papers. Any material received without such evidence will be assumed to originate from the authors.
Please include at the end of the acknowledgements a declaration that the experiments comply with the current laws of the country in which they were performed. The editors reserve the right to reject manuscripts that do not comply with the abovementioned requirements. The author(s) will be held responsible for false statements or failure to fulfill the above-mentioned requirements.
This title is licensed under a Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0).
You are free to:
Share — copy and redistribute the material in any medium or format.
Adapt — remix, transform, and build upon the material.
The licensor cannot revoke these freedoms as long as you follow the license terms.
Under the following terms:
-
Attribution — You must give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use.
-
NonCommercial — You may not use the material for commercial purposes.
-
ShareAlike — If you remix, transform, or build upon the material, you must distribute your contributions under the same license as the original.
- No additional restrictions — You may not apply legal terms or technological measures that legally restrict others from doing anything the license permits.
Notices:
- You do not have to comply with the license for elements of the material in the public domain or where your use is permitted by an applicable exception or limitation.
- No warranties are given. The license may not give you all of the permissions necessary for your intended use. For example, other rights such as publicity, privacy, or moral rights may limit how you use the material.
How to Cite
References
Alt, T., Heinrich, K., Funken, J., & Potthast, W. (2015). Lower extremity kinematics of athletics curve sprinting. Journal of sports sciences, 33(6), 552-560. https://doi.org/10.1080/02640414.2014.960881
Barratt, G. K., Bellenger, C., Robertson, E. Y., Lane, J., & Crowther, R. G. (2021). Validation of Plantar Pressure and Reaction Force Measured by Moticon Pressure Sensor Insoles on a Concept2 Rowing Ergometer. Sensors (Basel, Switzerland), 21(7), 2418. https://doi.org/10.3390/s21072418
Braun, B. J., Veith, N. T., Hell, R., Döbele, S., Roland, M., Rollmann, M., Holstein, J., & Pohlemann, T. (2015). Validation and reliability testing of a new, fully integrated gait analysis insole. Journal of foot and ankle research, 8, 54. https://doi.org/10.1186/s13047-015-0111-8
Cavanagh, P. R. (1987). The biomechanics of lower extremity action in distance running. Foot & ankle, 7(4), 197-217. https://doi.org/10.1177/107110078700700402
Chang, Y. H., & Kram, R. (2007). Limitations to maximum running speed on flat curves. The Journal of experimental biology, 210(Pt 6), 971-982. https://doi.org/10.1242/jeb.02728
Churchill, S. M., Salo, A. I., & Trewartha, G. (2015). The effect of the bend on technique and performance during maximal effort sprinting. Sports biomechanics, 14(1), 106-121. https://doi.org/10.1080/14763141.2015.1024717
Churchill, S. M., Trewartha, G., Bezodis, I. N., & Salo, A. I. (2016). Force production during maximal effort bend sprinting: Theory vs reality. Scandinavian journal of medicine & science in sports, 26(10), 1171-1179. https://doi.org/10.1111/sms.12559
Davis, R., Ounpuu, S., Tyburski, D., & Gage, J. (1991). A gait analysis data collection and reduction technique. Human Movement Sciences, 10, 575-587. https://doi.org/10.1016/0167-9457(91)90046-Z
Ferro, A., & Floria, P. (2013). Differences in 200-m sprint running performance between outdoor and indoor venues. Journal of strength and conditioning research, 27(1), 83-88. https://doi.org/10.1519/JSC.0b013e31824f21c6
Greene, P. R. (1985). Running on flat turns: experiments, theory, and applications. Journal of biomechanical engineering, 107(2), 96-103. https://doi.org/10.1115/1.3138542
Hanon, C., & Gajer, B. (2009). Velocity and stride parameters of world-class 400-meter athletes compared with less experienced runners. Journal of strength and conditioning research, 23(2), 524-531. https://doi.org/10.1519/JSC.0b013e318194e071
Ishimura, K., & Sakurai, S. (2016). Asymmetry in Determinants of Running Speed During Curved Sprinting. Journal of applied biomechanics, 32(4), 394-400. https://doi.org/10.1123/jab.2015-0127
Judson, L. J., Churchill, S. M., Barnes, A., Stone, J. A., Brookes, I. G. A., & Wheat, J. (2019). Horizontal force production and multi-segment foot kinematics during the acceleration phase of bend sprinting. Scandinavian journal of medicine & science in sports, 29(10), 1563-1571. https://doi.org/10.1111/sms.13486
Mackala, K. (2007). Optimisation of performance through kinematic analysis of the different phases of the 100 metres. New Studies in Athletics, 22, 7-16.
Nagahara, R., & Morin, J.-B. (2018). Sensor insole for measuring temporal variables and vertical force during sprinting. Proceedings of the Institution of Mechanical Engineers, Part P, 232(4), 369-374. https://doi.org/10.1177/1754337117751730
Oerbekke, M. S., Stukstette, M. J., Schütte, K., de Bie, R. A., Pisters, M. F., & Vanwanseele, B. (2017). Concurrent validity and reliability of wireless instrumented insoles measuring postural balance and temporal gait parameters. Gait & posture, 51, 116-124. https://doi.org/10.1016/j.gaitpost.2016.10.005
Quinn, M. D. (2009). The effect of track geometry on 200- and 400-m sprint running performance. Journal of sports sciences, 27(1), 19-25. https://doi.org/10.1080/02640410802392707
Stöggl, T., & Martiner, A. (2017). Validation of Moticon's OpenGo sensor insoles during gait, jumps, balance and cross-country skiing specific imitation movements. Journal of sports sciences, 35(2), 196-206. https://doi.org/10.1080/02640414.2016.1161205
Stoner, L. J., & Ben-Sira, D. (1979). Sprinting on the Curve. In J. Terauds & G. G. Dale (Eds.), Science in Athletics, 167-173.
Williams, D. S., 3rd, McClay, I. S., & Hamill, J. (2001). Arch structure and injury patterns in runners. Clinical biomechanics (Bristol, Avon), 16(4), 341-347. https://doi.org/10.1016/S0268-0033(01)00005-5
